Slewing ball bearing ring RK6-25P1Z 33.39*24.97*2.205 inch size

Slewing bearing ring RK6-25P1Z 33.39*24.97*2.205 inch size

Slewing rings bearing RK6-25P1Z can be lubricated with grease or oil. The decisive factors in determining the appropriate type of lubrication and quantity of lubricant required are: the design and size of the bearing the design of the bearing environment, the lubricant feed,the operating conditions.

Slewing ball bearing Model NO.:RK6-25P1Z
The bearing boundary dimension :748X534.2X55.88
The bearing outside diameter:748mm
The bearing inner diameter:534.2mm
The bearing total height:55.88mm
The bearing tolerance:+/-0.4mm
The bearing structure:single row four point contact ball bearing with doulbe flange

For the fitting of slewing rings, not only the marking on the tooth tip but also the so-called hardness gap is important.
The bearing ring material:42CrMo,50Mn available
Seal:sealed on both side
Flange:two rings with flange
Ball material:GCr15 steel
HS Code:8482100090
Perspiration from handling leads to corrosion. Hands must be kept clean and dry; protective gloves should be worn if necessary.
MOQ:2 PCS
Package: wooden case

Slewing Ring Bearings RK6-25P1Z main used for Ladle turret,Stacker crane,Bucket wheel machine,Solar heliostat Tracking System,port crane, Cabling machine,tower crane , offshore platform,ferris wheel, Palletizing robot,Rotary metallurgical furnace,can packing machine,Wind blade transporter,shield tunneling machine,tube push bench,excavator.

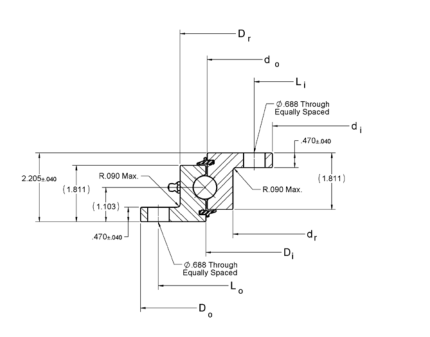

Slewing ball bearing ring RK6-25P1Z 33.39*24.97*2.205 inch size Images
